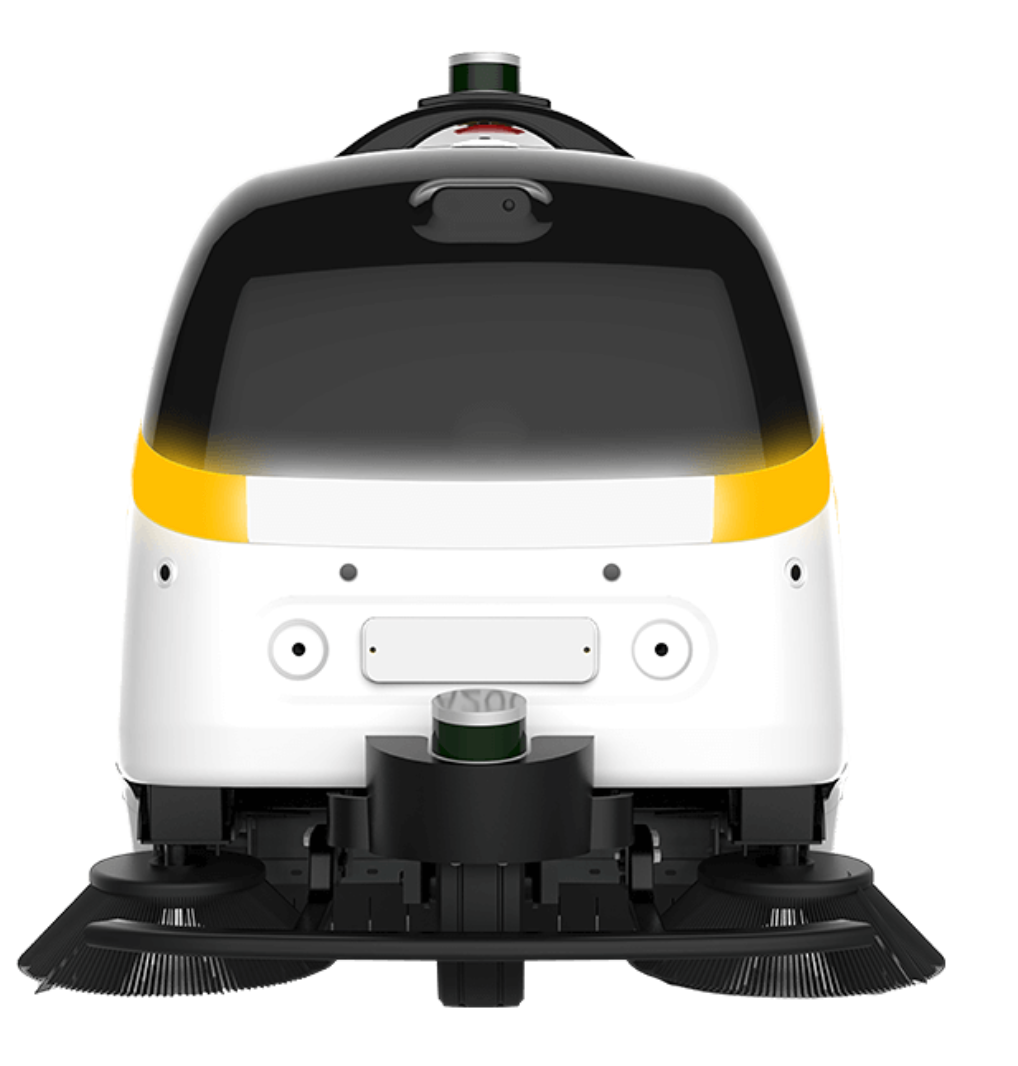

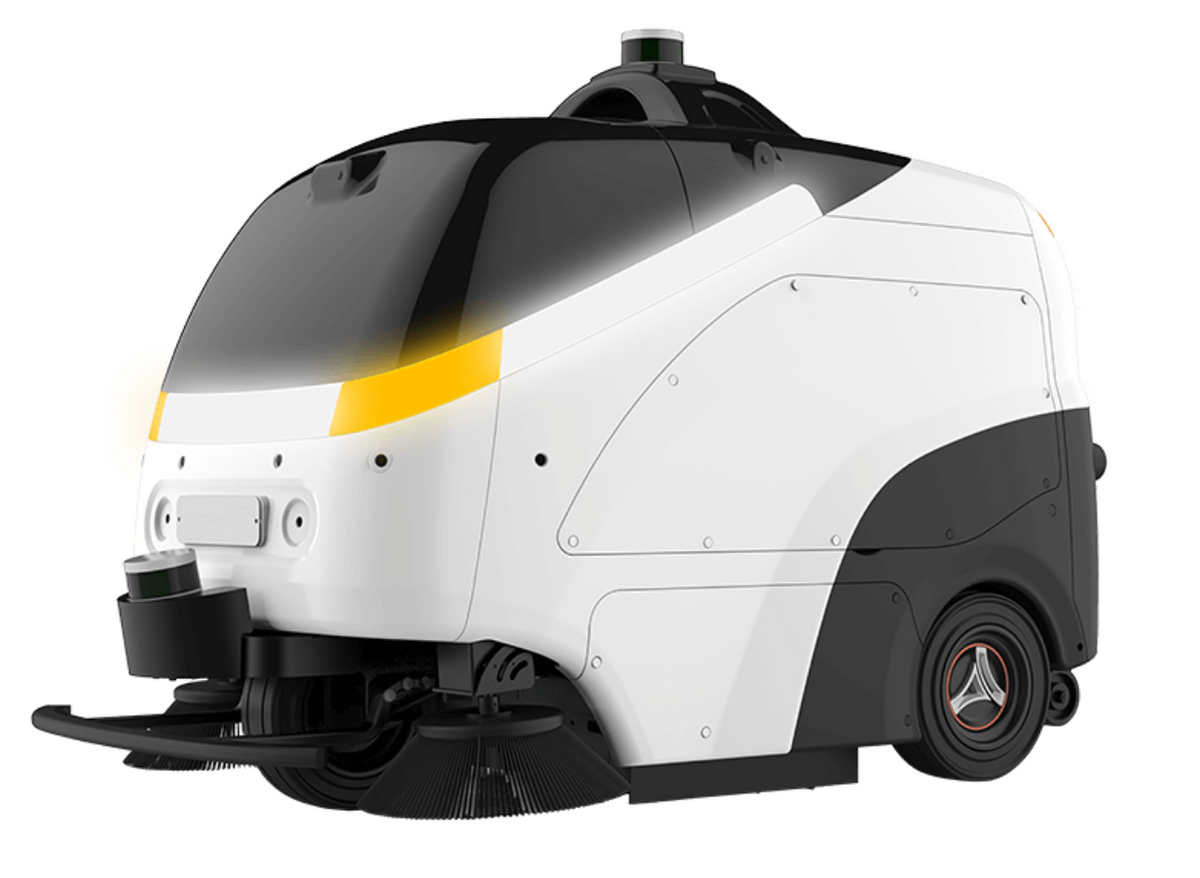

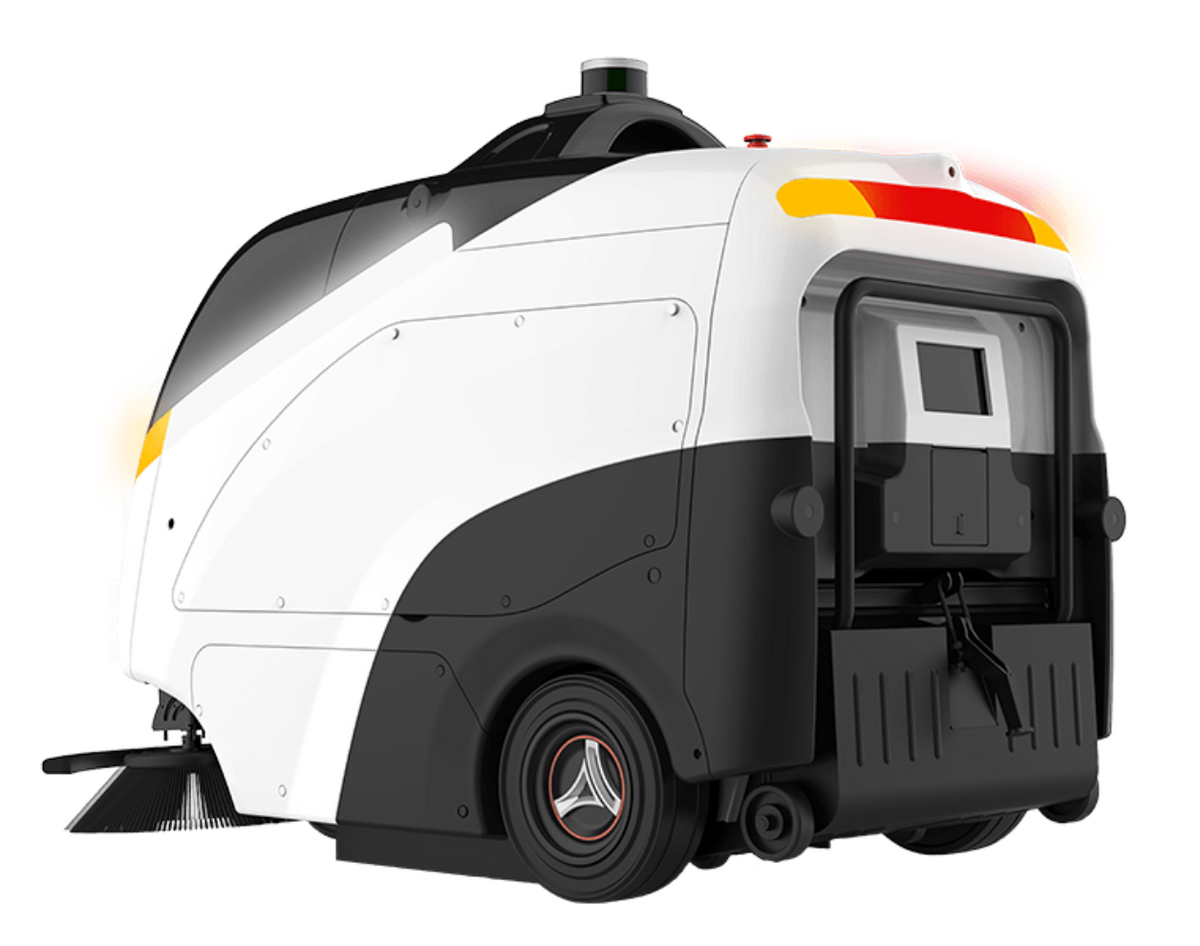

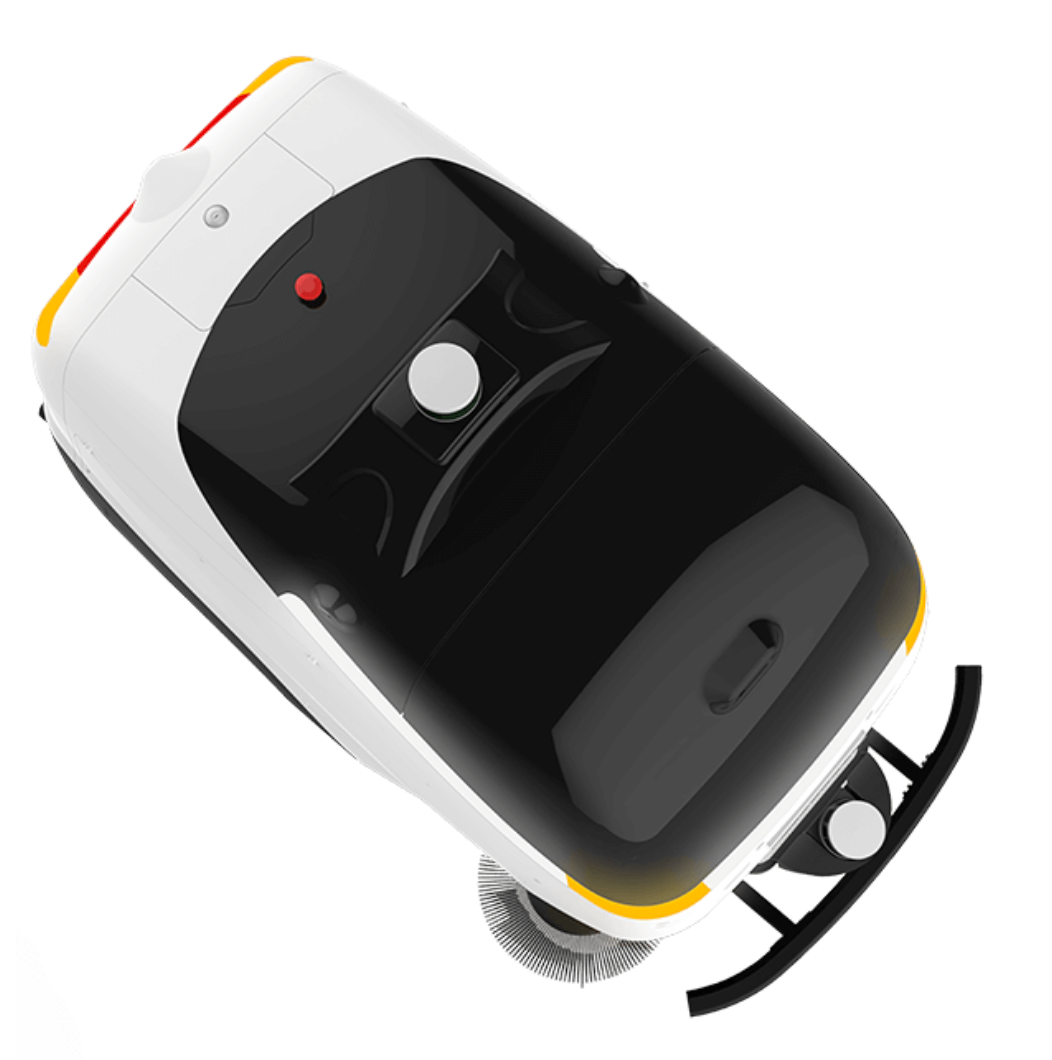

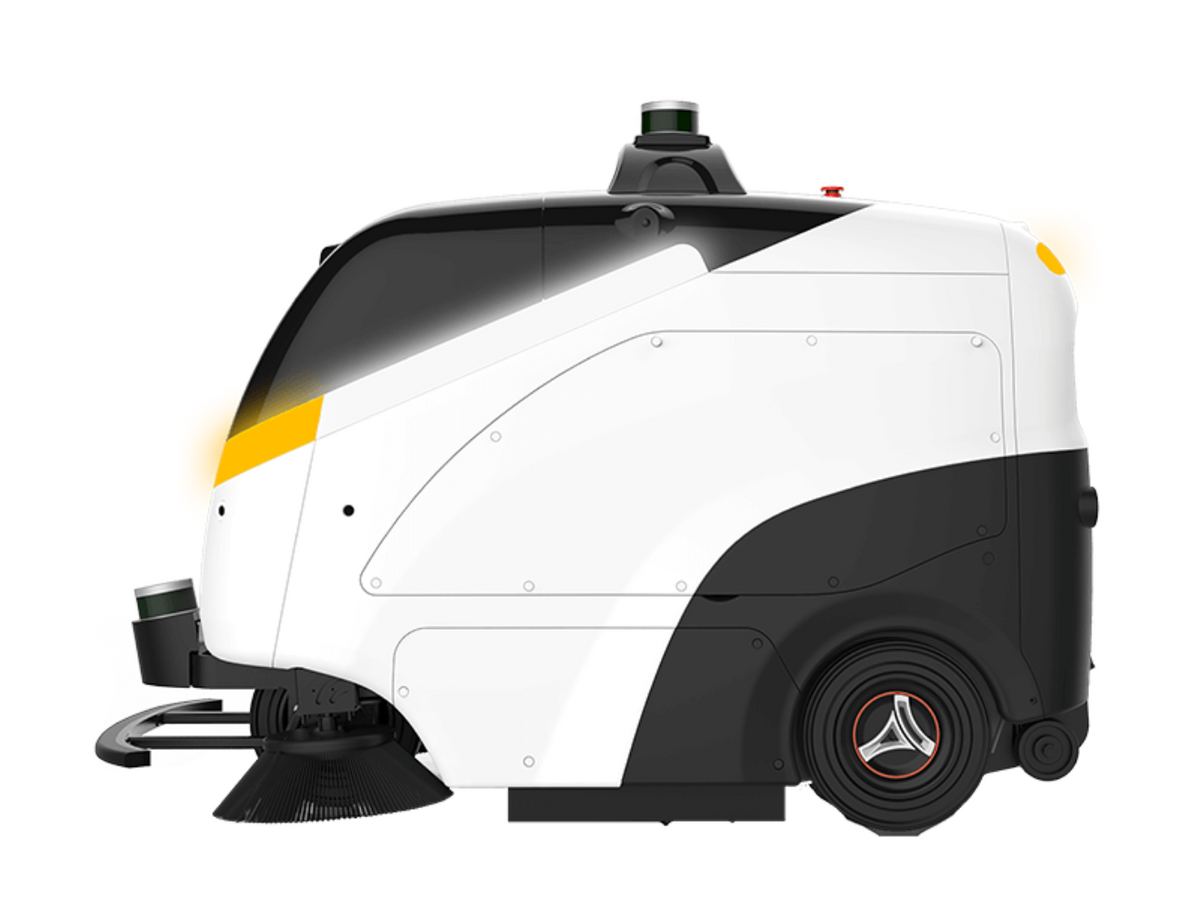

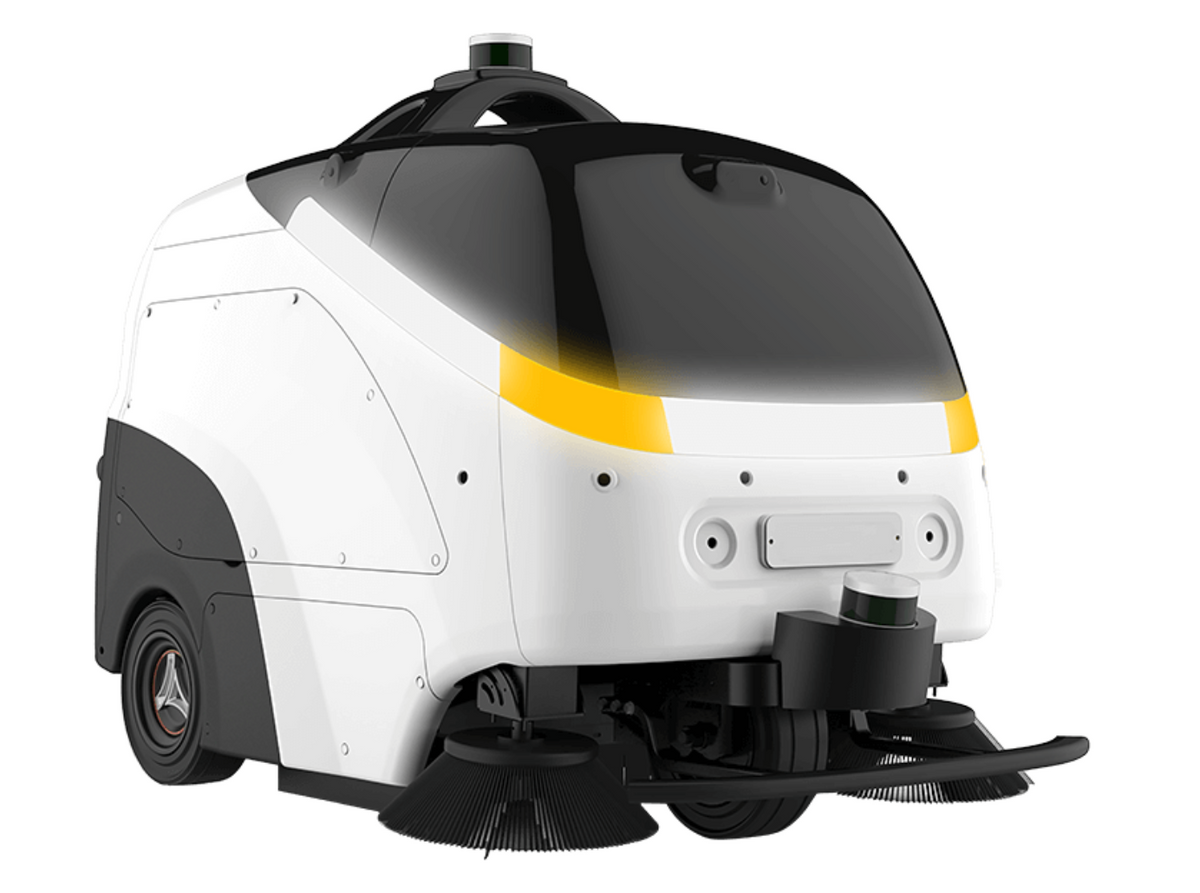

VIGGO S100-N Outdoor Cleaning Robot

M100E's Autopilot Mode is your secret weapon for hands-free cleaning. Equipped with advanced 3D LiDAR technology, the M100E generates precise 3D point cloud maps of your facility. This advanced system provides comprehensive coverage, capturing both ground and ceiling features to enhance positioning and ensure superior accuracy.

Why Facilities Choose the M100E

When square footage grows, manual scrubbing becomes challenging to staff, hard to standardize, and easy to miss. The M100E is designed to deliver a repeatable clean using path memory, smart obstacle detection, and automatic docking/recharging, helping teams maintain cleanliness across warehouses, supermarkets, offices, transit facilities, and more.

Key Benefits:

• Autonomous + Ride-on Flexibility: Easily switch between autonomous and manual/ride-on operation depending on the job and time of day.

• High-Capacity Tanks = Fewer Stops: 120 L (31.7 gal) fresh water + 140 L (37.0 gal) recovery + 5 L (1.3 gal) detergent for longer cleaning cycles with fewer refills.

• Strong Pickup + Consistent Finish: Up to 17 kPa suction, dual disk brushes, and 3 levels of brush pressure to match different soils and floor types.

• Wide Cleaning Path: 860 mm (33.9") cleaning width to cover big spaces efficiently.

• Large-area productivity: Rated to clean up to 12,000 m² (≈129,167 ft²) on a single refill for large-scale routines.

• Set it and forget it navigation: Uses 3D LiDAR plus 2D LiDAR, depth cameras, ultrasonic, and infrared sensors for mapping, positioning, and obstacle detection.

• Safety-first operation: Includes cliff detection, collision safety edge, emergency stop, and built-in speed limits/alerts.

• Always Ready with Self-Docking Recharge: When paired with its charging station, M100E can return to recharge automatically and resume work.

Large Facility Performance:

M100E is engineered for big footprints and complex layouts. In autonomous mode, it’s rated at 1238 m²/hr (≈13,326 ft²/hr); in manual mode, up to 5590 m²/hr (≈60,170 ft²/hr)—giving you the option to automate routine scrubbing while still having a high-throughput ride-on scrubber on demand.

Use Cases

• Warehouses and distribution centers
• Supermarkets and big-box retail
• Office buildings and campuses
• Public transit facilities and stations
• Parking areas and large back-of-house corridors

Battery & Capacity

• Battery Type:                 Lithium-ion
• Battery Capacity:          4,032 Wh (~4.0 kWh)
• Runtime:                         Up to 3.5 hours
• Charge Time:                   ~4.5 hours
• Automatic Recharge:    Supported

Note: Performance figures (range, speed, runtime, traversal) are typically based on controlled testing and can vary with payload, terrain, temperature, and site conditions.

Specs

Robot and Chassis

• Dimensions (L×W×H):   67.5 × 44.1 × 58.1 in
• Net weight:                        ~701 lbs.
• Noise:                                 < 75 dBA
• Connectivity:                    4G, wireless, IoT, OTA, remote control
• Driving Mode:                     Two rear-wheel drive
• Max Slope (Not Loaded):       65% Slope (33° Grade)
• Full Load Gradeability:          15° Slope (26% Grade)

Cleaning Specifications

In the Box

• Sveabot M100E

• User manual and quick-start guide
• Charging Station


Media

FAQs

Q1. What types of facilities is the Sveabot M100E best suited for?
The M100E is designed for large commercial and industrial spaces that need consistent, repeatable scrubbing at scale—such as warehouses and distribution centers, manufacturing, supermarkets and big-box retail, office campuses, transit facilities, parking areas, and large back-of-house corridors.

Q2. Is it designed for indoor use only, or can it handle outdoor areas too?
The M100E is positioned for both indoor and outdoor use in appropriate conditions. It’s rated IPX3 and operates in temperatures from 32°F to 113°F, making it a good fit for large indoor areas and covered/semi-outdoor routes where splash resistance is sufficient.

Q3. What kind of cleaning does it do (scrub path, brushes, suction)?
The M100E uses dual disk brushes with three levels of brush pressure, and delivers strong pickup suction (about 2.5 psi equivalent). Its scrub path covers about 34 inches per pass for efficient large-area cleaning.

Q4. How much area can it clean per hour?
Cleaning performance is listed as:

• Autonomous Mode: Up to ~13,300 sq ft per hour
• Manual (Ride-On) Mode: Up to ~60,200 sq ft per hour

Q5. How long can it scrub before refilling water?
It’s designed for long cleaning runs and is rated to cover up to about 129,000 sq ft per refill, reducing downtime on large jobs.

Q6. What are the tank capacities?

• Fresh Water: ~31.7 gallons
• Recovery (Wastewater): ~37.0 gallons
• Detergent Tank: ~1.3 gallons


Q7. Is it safe around people and obstacles?
Yes. The M100E uses a multi-sensor navigation stack (including LiDAR and vision sensors) and includes safety features such as edge/collision protection, drop-off detection, and an emergency stop, with configurable safety behaviors for busy environments.

Q8. How does autonomous cleaning work—does it remember routes?
In autonomous mode, the M100E maps the environment and supports route memory so your team can repeat cleaning runs consistently across defined zones and schedules.

Q9. What’s the advantage of having both autonomous and manual (ride-on) modes?
You can automate routine daily scrubbing (steady, consistent coverage) while still using manual ride-on mode for time-sensitive cleanup, peak-traffic windows, or areas that need hands-on attention.

Q10. How does charging work and what is charge time?
With the optional docking setup, the M100E can return to its charging station automatically. Charging is listed at about 4.5 hours, with runtime listed at up to about 3.5 hours, depending on conditions and usage.

Q11. What connectivity / remote management options does it support?
The platform supports wireless connectivity, including cellular connectivity, remote tools, and over-the-air updates, enabling easier fleet management across multiple sites.

Q12. What are the key site requirements (turning, speed, slopes, noise)?
Key operational specs include:

• Turning Radius: ~4 feet
• Top Travel Speed: ~4 mph
• Noise: Under 75 dBA
• Grade Capability: up to ~65% grade (and about a 26% grade when fully loaded, as listed)
